The right solution for solvent-based 2K production
OPX301 suits manufacturers already using solvent-based acrylic or polyurethane 2K systems who want a deep, uniform matt finish without rebuilding the production process.
Absolute matt without rebuilding production
OPX301 is a transparent, solvent-based two-component polyurethane finish. It is designed for a standard spray area and is applied over a prepared solvent-based 2K base.
The solution adds the ULTRA S-MATT look to an existing production cycle without switching to water-based materials, buying UV equipment, or changing the established application process.

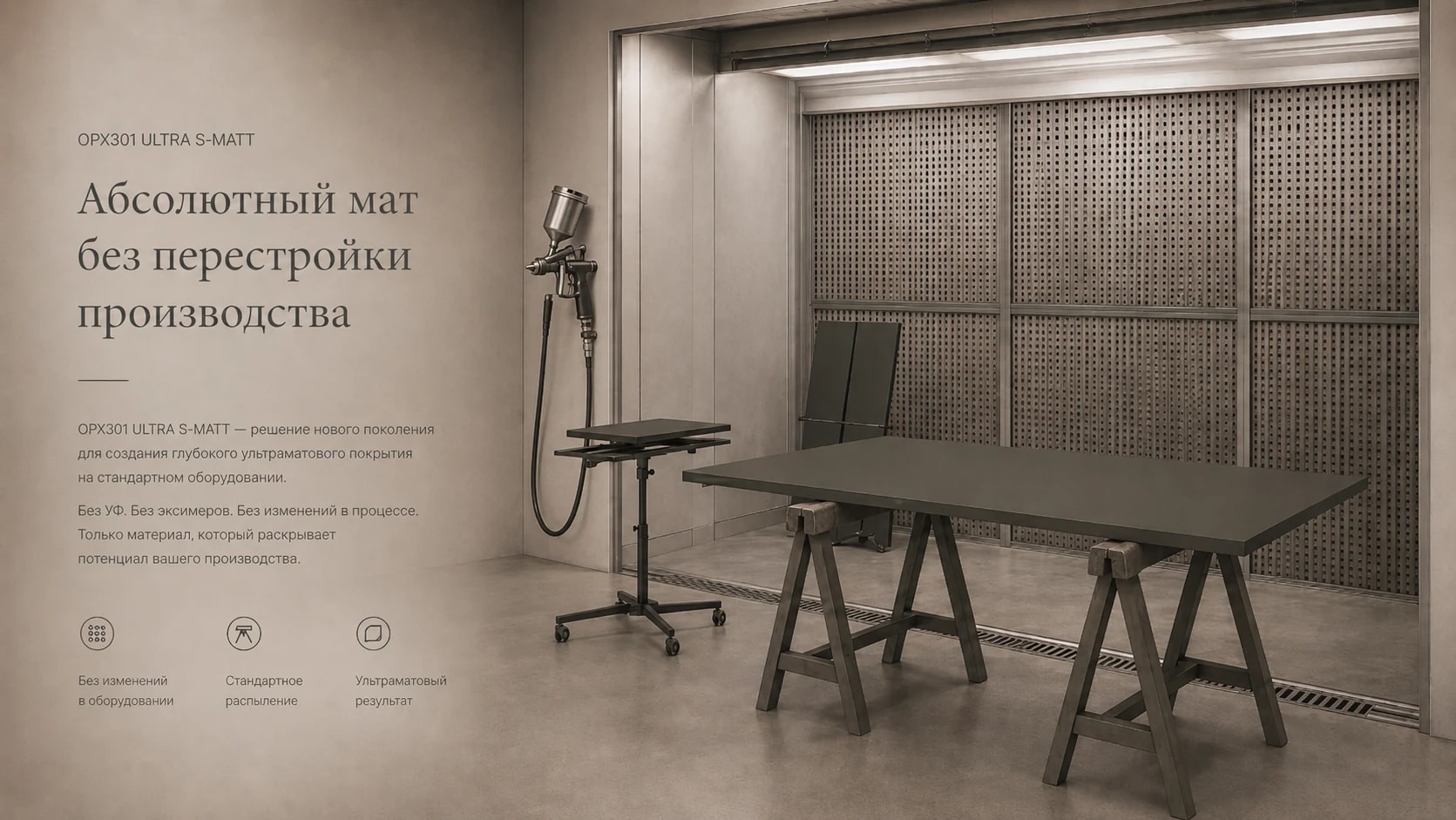

Standard spray booth and horizontal OPX301 application
OPX: transparent 2K systems
For production using solvent-based acrylic and polyurethane materials. The lower layer creates the colour, while transparent OPX creates the matt level and final appearance.
- OPX300
- OPX301
- OPX302
AOX: water-based technology
For manufacturers choosing water-based technology. The AOX branch includes transparent and white versions plus a converter for tinting.
- AOX1018
- AOX1020B
- water-based tinting
The lower layer creates the colour. OPX301 creates the finish
OPX301 is not pigmented. A pigmented acrylic or polyurethane lower layer creates the colour, then transparent OPX301 provides near-zero gloss, an anti-glare effect, and the final tactile quality.
Separating colour from finish allows one transparent product to be used over many shades.

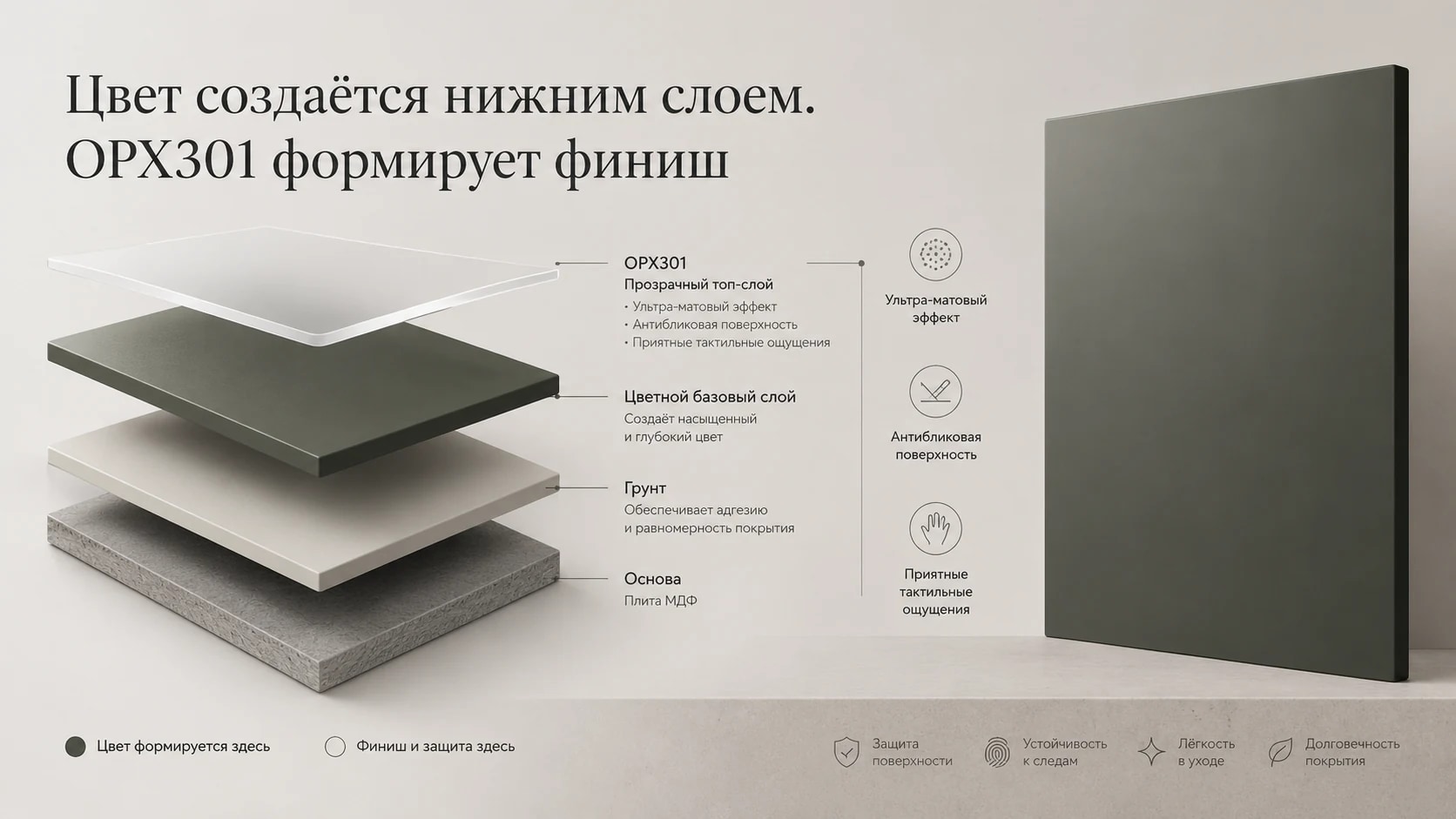

Substrate, primer, colour layer, and transparent OPX301
One transparent finish, many colours
The same OPX301 can be used over white, pastel, dark, and saturated shades. A collection of fronts can therefore share one matt level without a separate finish recipe for every colour.
- consistent collection aesthetic
- simpler range management

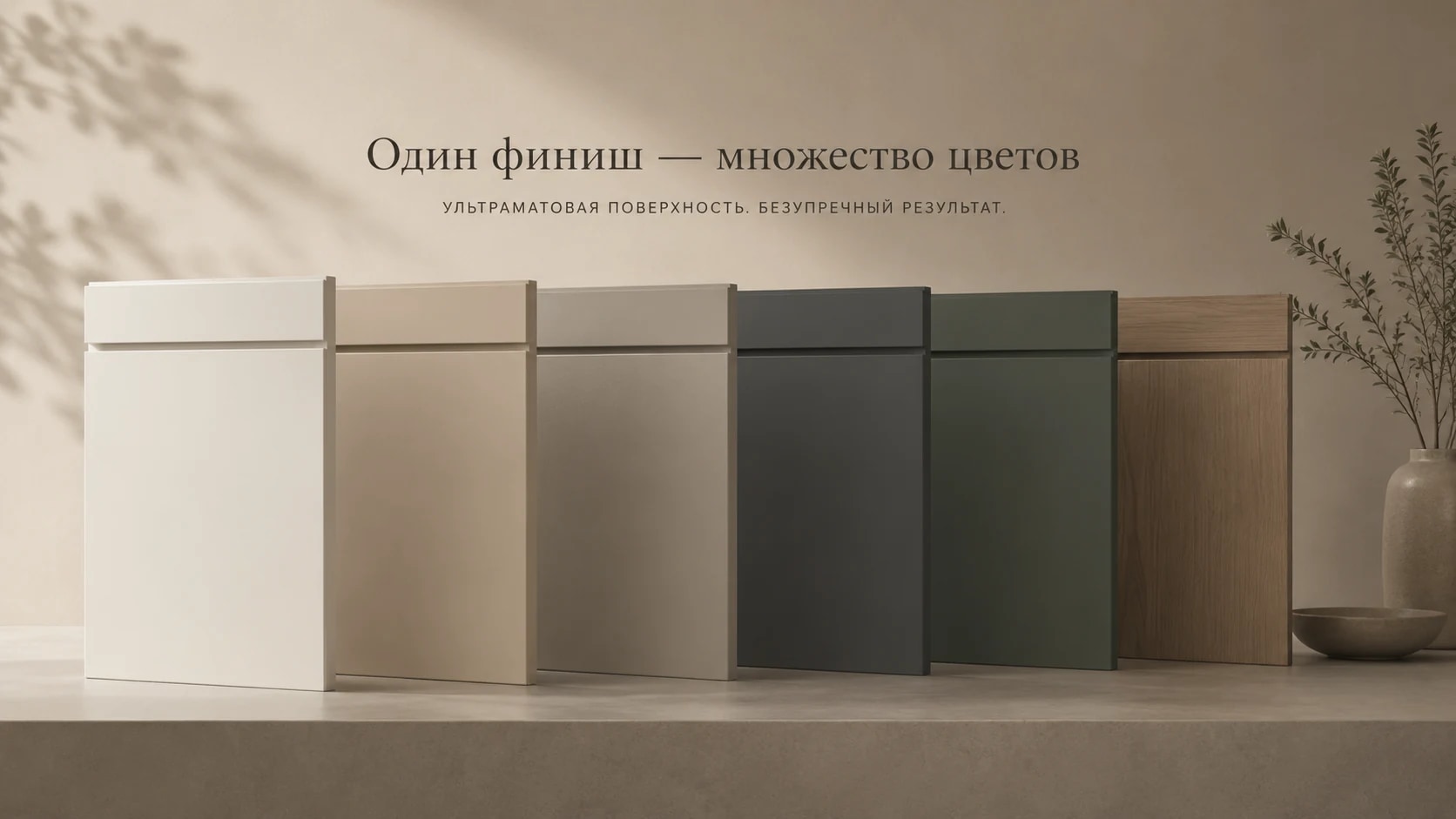

The colour changes while the surface character remains consistent

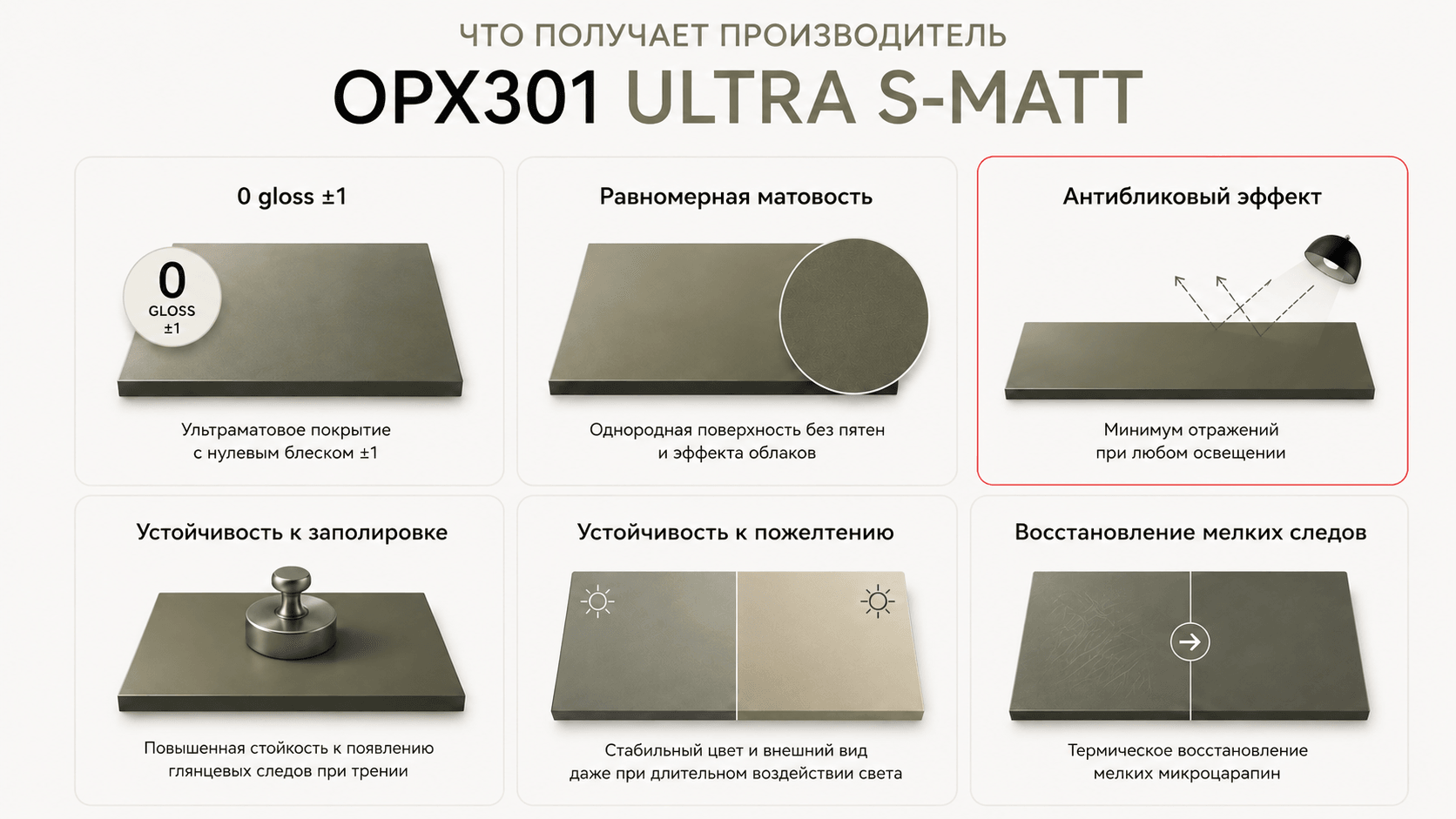

Key properties of the finished OPX301 ULTRA S-MATT surface
What the manufacturer gains
Virtually no reflected light.
A uniform appearance across flat parts and large fronts.
A calm, deep perception of colour.
Improved resistance to polishing and yellowing, with thermal recovery of minor marks.
Products suited to this solution
OPX301 is intended for interior furniture, cabinet doors, interior fittings, and flat panels.
For worktops, floors, and heavily loaded horizontal surfaces, the system must be validated with separate testing.
- kitchen fronts
- wardrobes and interior doors
- wall and decorative panels
- cabinet furniture

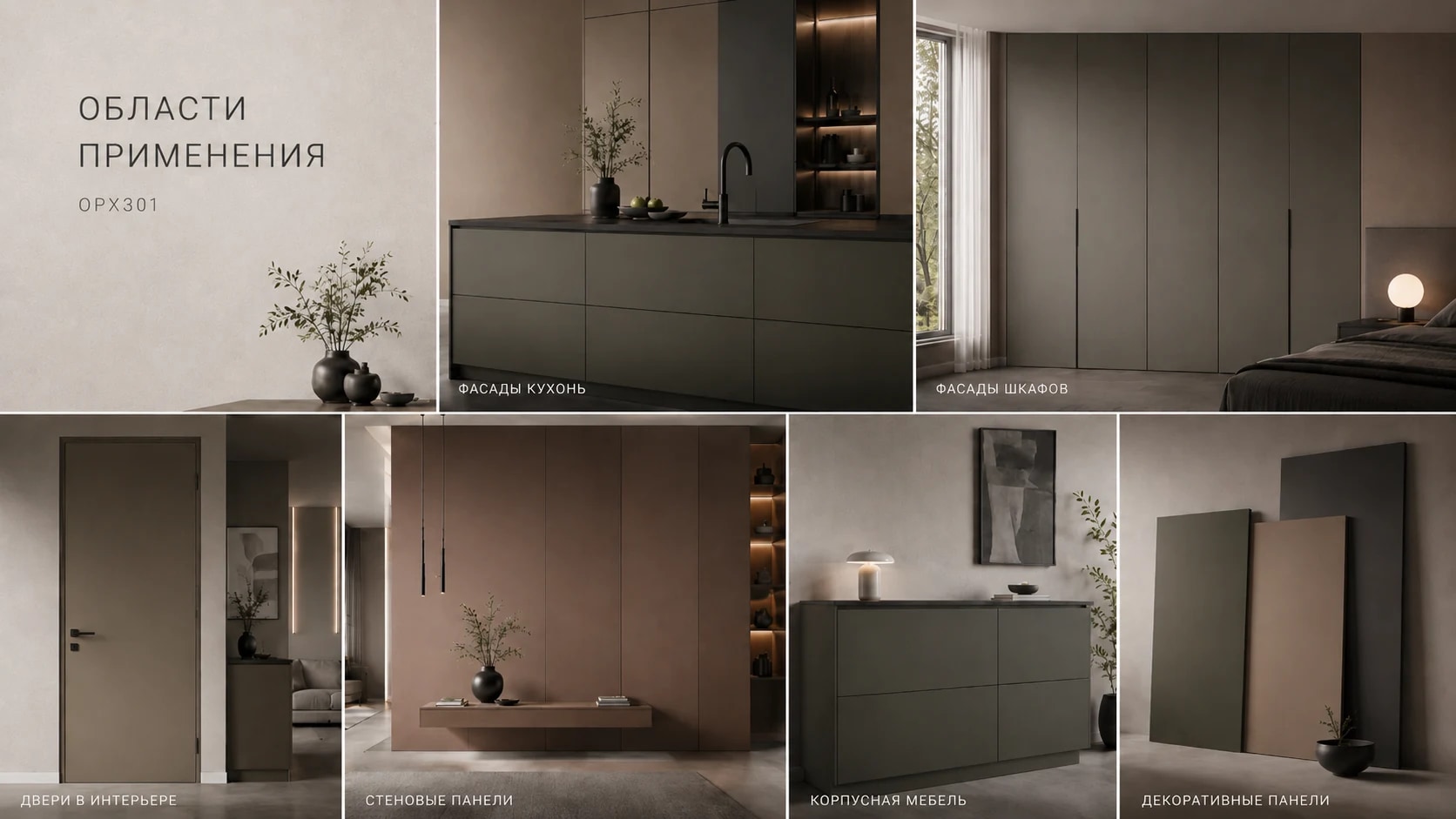

Interior applications for OPX301
When to choose OPX301
Choose OPX301 for a solvent-based 2K process, a transparent finish over an established colour, near-zero gloss, and standard spraying without a UV or excimer line.
AOX1018 suits projects prioritising a water-based 2K system; UVX and UVNX suit high-output UV lines; VMAOX provides an ultra-matt metallic effect.

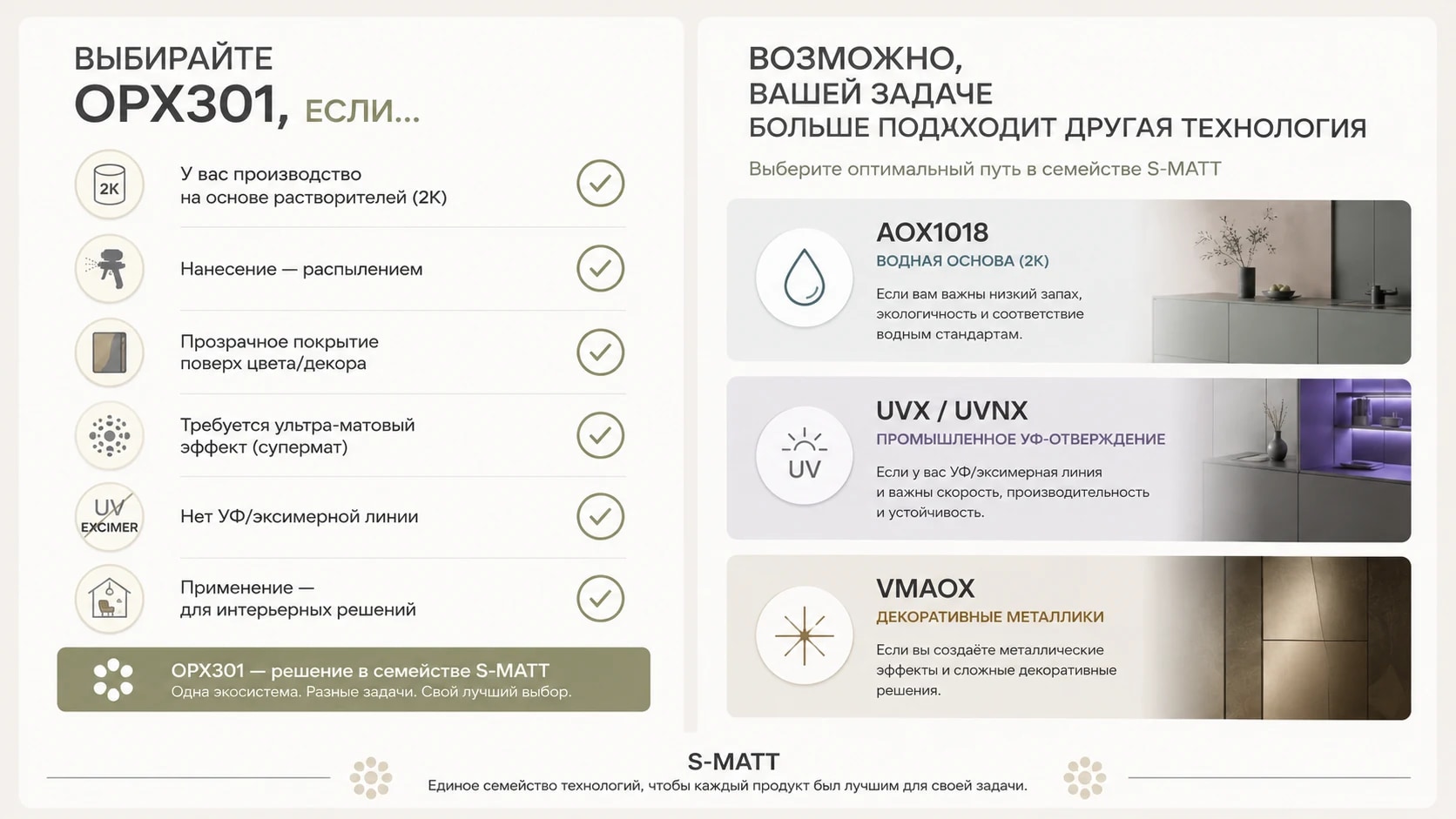

Choosing technology by equipment and production task
OPX301 application process
Request the current TDS and validate the cycle with a test application before production launch.
Key technical parameters
Transparent solvent-based 2K polyurethane finish
0 gloss +/-1
C200 - 30% by weight or volume
D1010 - up to 20% by weight or volume
Approximately 3 hours
Cup gun: 1.7-1.9 mm nozzle at 2.0-2.5 bar; Airmix: 0.009-0.011 inch nozzle
Touch dry in approximately 2 hours at 23 C and 50% RH
365 days in undamaged packaging at 5-35 C away from direct sunlight

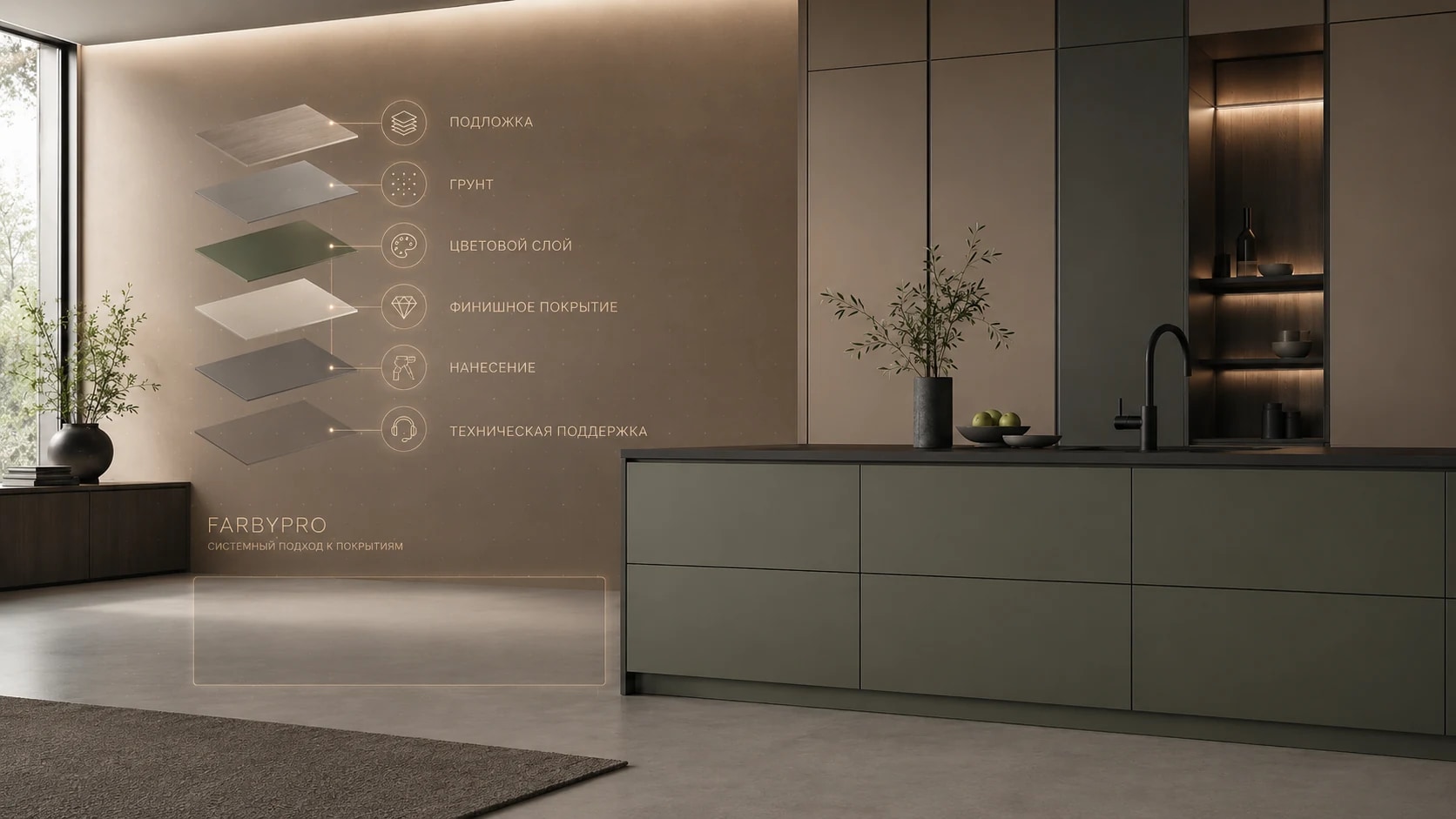

A complete system for your production
FarbyPRO selects the coating cycle around the substrate, colour, product design, load, and the customer's actual equipment.
